Security Model

Overview

The OVES Access Management system implements a comprehensive security model based on Zero Trust Architecture principles, ensuring that every user, device, and request is verified before granting access.

Security Principles

1. Zero Trust Architecture

Never Trust, Always Verify

• Verify identity for every user and device
• Grant least privilege access
• Monitor and log all activities
• Assume breach and limit blast radius

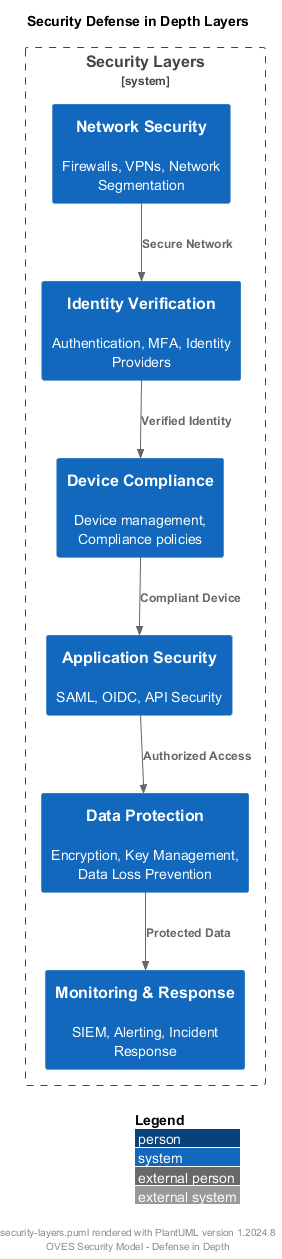

2. Defense in Depth

Multiple layers of security protection:

Click diagram to view PlantUML source

3. Principle of Least Privilege

• Users receive minimum necessary permissions
• Just-in-time access for administrative tasks
• Regular access reviews and cleanup
• Role-based access control (RBAC)

Identity Security

Azure AD Security Model

Multi-Factor Authentication (MFA)

• Required for all users without exception
• Multiple authentication methods supported
• Risk-based conditional access
• Hardware security key support for admins

Conditional Access Policies

Policy	Condition	Action
High-Risk Sign-in	Risk level: High	Block access
Unmanaged Device	Non-compliant device	Require MFA + App Protection
Legacy Authentication	Old protocols	Block completely
Admin Access	Privileged roles	Require compliant device + MFA
Geographic	Outside approved regions	Require additional verification

Privileged Identity Management (PIM)

PIM Configuration:
  Just-in-Time Access:
    - Temporary elevation (max 8 hours)
    - Approval workflow required
    - Multi-person approval for critical roles

  Access Reviews:
    - Quarterly for all privileged roles
    - Monthly for Global Administrators
    - Automatic removal of unused access

  Monitoring:
    - Real-time alerts for privilege escalation
    - Detailed audit logs
    - Risk scoring for admin activities

Keycloak Security Model

Customer Data Protection

GDPR Compliance - Data minimization principles - Explicit consent management - Right to be forgotten implementation - Data portability support

Privacy by Design - Pseudonymization of personal data - Encryption at rest and in transit - Regular data protection impact assessments - Privacy-preserving authentication flows

Session Security

{
  "sessionSecurity": {
    "settings": {
      "idleTimeout": "30 minutes",
      "maxSessionLength": "8 hours",
      "rememberMeExpiry": "30 days",
      "tokenLifetime": "1 hour",
      "refreshTokenLifetime": "30 days"
    },
    "cookies": {
      "sameSite": "Strict",
      "secure": true,
      "httpOnly": true,
      "domain": ".oves.com"
    },
    "security": {
      "bruteForceProtection": true,
      "maxLoginFailures": 5,
      "waitIncrementSeconds": 60,
      "maxDeltaTime": "12 hours"
    }
  }
}

Application Security

Odoo Security Integration

Federated Authentication

• SAML 2.0 for Azure AD integration
• OpenID Connect for Keycloak integration
• Token validation and claims mapping
• Session federation and single logout

Role Mapping and Separation

Role Mapping:
  Azure AD → Odoo:
    "OVES-Employees": "Internal Users"
    "OVES-Sales": "Sales Team"
    "OVES-Contractors": "Limited Users"
    "OVES-Admins": "System Administrators"

  Keycloak → Odoo:
    "Customer": "Portal Users"
    "Partner": "Partner Users"
    "Franchisee": "Franchise Users"
    "VIP-Customer": "Premium Portal Users"

Data Separation:
  Internal Data:
    - Managed by Azure AD permissions
    - Full business process access
    - Internal reporting and analytics

  External Data:
    - Managed by Keycloak permissions
    - Limited to customer-specific data
    - Privacy-compliant data access

Secret Management

Azure Key Vault Integration

Secret Categories

Secret Type	Storage Location	Access Method	Rotation Policy
Database Connections	Azure Key Vault	Managed Identity	180 days
API Keys	Azure Key Vault	Service Principal	90 days
Certificates	Azure Key Vault	Automated renewal	Before expiry
Encryption Keys	Azure Key Vault HSM	Hardware security	1 year

Access Policies

# Example Key Vault access policy
Set-AzKeyVaultAccessPolicy `
    -VaultName "OVES-Secrets-Vault" `
    -ObjectId $groupObjectId `
    -PermissionsToSecrets @("Get", "List") `
    -PermissionsToKeys @("Get", "List", "Decrypt", "Encrypt") `
    -PermissionsToCertificates @("Get", "List")

Keycloak Secret Management

Client Secrets

• Automatic rotation for service accounts
• Secure client credential flows
• Token introspection for validation
• Revocation capabilities

External Identity Provider Secrets

• Encrypted storage of OAuth client secrets
• Secure callback URL validation
• Token exchange security
• Regular credential auditing

Network Security

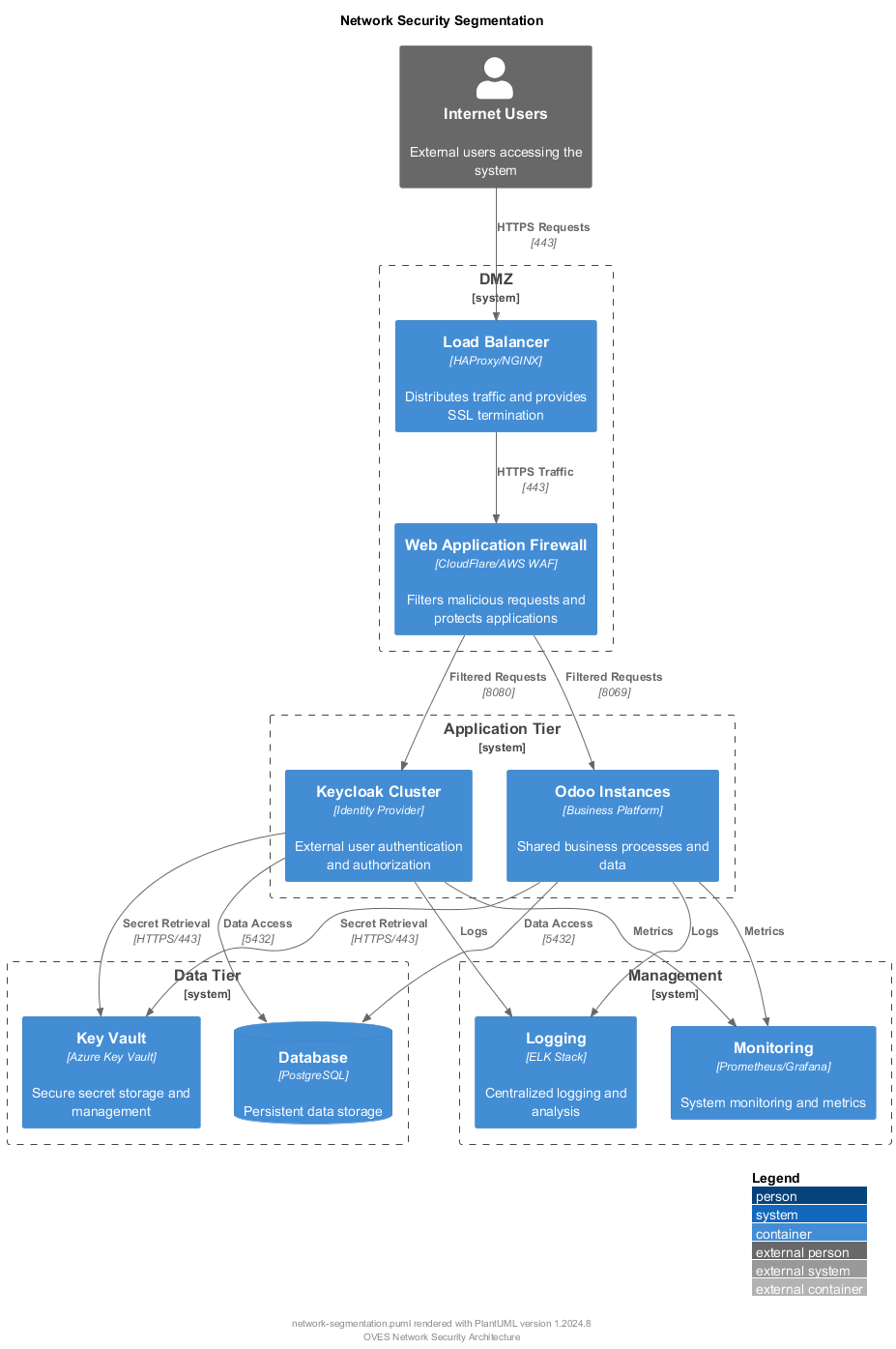

Network Segmentation

Click diagram to view PlantUML source

Security Groups and Firewall Rules

Source	Destination	Port	Protocol	Purpose
Internet	Load Balancer	443	HTTPS	Public access
WAF	Keycloak	8080	HTTP	Internal communication
WAF	Odoo	8069	HTTP	Internal communication
App Tier	Database	5432	PostgreSQL	Database access
App Tier	Key Vault	443	HTTPS	Secret retrieval

Monitoring and Detection

Security Information and Event Management (SIEM)

Log Sources

• Azure AD: Sign-in logs, audit logs, risk detections
• Keycloak: Authentication events, admin actions
• Odoo: Business process logs, data access
• Infrastructure: System logs, network traffic

Alert Rules

{
  "alertRules": [
    {
      "name": "Suspicious Login Activity",
      "condition": "Multiple failed logins from same IP",
      "threshold": 5,
      "timeframe": "5 minutes",
      "severity": "High",
      "action": "Block IP and notify security team"
    },
    {
      "name": "Privilege Escalation",
      "condition": "Role assignment changes",
      "threshold": 1,
      "timeframe": "Immediate",
      "severity": "Critical",
      "action": "Immediate notification and review"
    },
    {
      "name": "Unusual Data Access",
      "condition": "Access to sensitive data outside normal hours",
      "threshold": 1,
      "timeframe": "1 hour",
      "severity": "Medium",
      "action": "Log and review"
    }
  ]
}

Threat Detection

Behavioral Analytics

• Machine learning-based anomaly detection
• User and entity behavior analytics (UEBA)
• Risk scoring for authentication events
• Automatic response to high-risk activities

Indicators of Compromise (IoC)

• Known malicious IP addresses
• Suspicious user agent strings
• Impossible travel scenarios
• Credential stuffing patterns

Incident Response

Security Incident Classification

Severity	Description	Response Time	Escalation
Critical	Active data breach, system compromise	15 minutes	CISO, Legal
High	Unauthorized access, privilege escalation	1 hour	Security team
Medium	Policy violations, suspicious activity	4 hours	IT team
Low	Information gathering, reconnaissance	24 hours	Monitoring team

Response Procedures

1. Detection and Analysis
2. Automated alert triggered
3. Initial triage and validation
4. Impact assessment

5. Evidence preservation

6. Containment

7. Immediate threat isolation
8. Account lockdown if necessary
9. Network segmentation

10. System isolation

11. Eradication and Recovery

12. Root cause analysis
13. System hardening
14. Credential rotation

15. Service restoration

16. Post-Incident Review

17. Lessons learned documentation
18. Process improvements
19. Policy updates
20. Training updates

Compliance and Auditing

Compliance Frameworks

• SOC 2 Type II: Security, availability, processing integrity
• GDPR: Data protection and privacy
• ISO 27001: Information security management
• NIST Cybersecurity Framework: Identify, protect, detect, respond, recover

Audit Requirements

Regular Audits

• Monthly: Access reviews and cleanup
• Quarterly: Security policy compliance
• Annually: Penetration testing and vulnerability assessment
• Continuously: Automated compliance monitoring

Audit Trail Requirements

• Immutable logging for all authentication events
• Data retention for minimum 7 years
• Log integrity verification
• Compliance reporting automation

Security Metrics and KPIs

Key Performance Indicators

Metric	Target	Measurement
MFA Adoption	100%	Users with MFA enabled
Patch Compliance	>95%	Systems with latest security patches
Incident Response Time	<15 min (Critical)	Time to initial response
Failed Login Rate	<5%	Ratio of failed to successful logins
Access Review Completion	100%	Completed reviews within SLA

Risk Metrics

• Identity Risk Score: Calculated based on user behavior
• System Vulnerability Score: Based on security assessments
• Compliance Score: Percentage of controls implemented
• Threat Detection Accuracy: True positive rate for alerts

---
